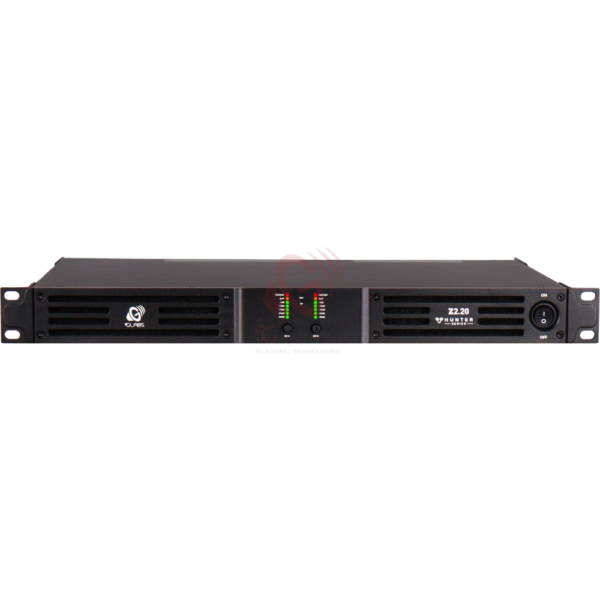

GLABS Z2.20 AMPLIFIER

Output Power Stereo (RMS) – 2 x 2000W @ 8ohm

Output Power Stereo (RMS) – 2 x 3350W @ 4ohm

Output Power Stereo (RMS) – 2 x 4950W @ 2ohm

Bridge Mode (RMS) – 4000W @ 16ohm

Bridge Mode (RMS) – 6600W @ 8ohm

Bridge Mode (RMS) – 8400W @ 4ohm

Frequency Response – 10Hz-20KHz/±0.35dB

THD+N (20Hz-20KHz) – <0.5% @ 801kHz

S/N Rate (20Hz-20 kHz) – >102dB

Crosstalk (1KHz) – >70dB

Slew Rate – >30ν/με

Damping Factor – >5000 (8Ohm) 20Hz to 100Hz

Voltage Gain – 45dB (0.775V:127V)

Input Sensitivity – 0.775V,1V,1.4V,2V

Input Impedance – 10K Ω balance/20K Ω unbalance

Input Connectors – XLR Active balanced pin1 gnd/pin 2+/pin3-

Output Connectors – 2 Neutrik NL4 Sockets /2 input posts

Protection – short-circuit, DC, overload, overheat, ultrasonic, RF, voltage peak limit,

Operating Voltage – AC 100V-260V/50Hz-60Hz

Fuse – F-25A

Power consumption (Idle) – <155W

Power consumption (Max) – <8500W

Cicuit – Class D

Dimensions (LxWxD) – 483mmx415mm×45mm (1U)

Package (L×W×D) – 610mm×500mm×100mm

Net Weight – 10Kg

Gross Weight – 11.5Kg

Description

Output Power Stereo (RMS) – 2 x 2000W @ 8ohm

Output Power Stereo (RMS) – 2 x 3350W @ 4ohm

Output Power Stereo (RMS) – 2 x 4950W @ 2ohm

Bridge Mode (RMS) – 4000W @ 16ohm

Bridge Mode (RMS) – 6600W @ 8ohm

Bridge Mode (RMS) – 8400W @ 4ohm

Frequency Response – 10Hz-20KHz/±0.35dB

THD+N (20Hz-20KHz) – <0.5% @ 801kHz

S/N Rate (20Hz-20 kHz) – >102dB

Crosstalk (1KHz) – >70dB

Slew Rate – >30ν/με

Damping Factor – >5000 (8Ohm) 20Hz to 100Hz

Voltage Gain – 45dB (0.775V:127V)

Input Sensitivity – 0.775V,1V,1.4V,2V

Input Impedance – 10K Ω balance/20K Ω unbalance

Input Connectors – XLR Active balanced pin1 gnd/pin 2+/pin3-

Output Connectors – 2 Neutrik NL4 Sockets /2 input posts

Protection – short-circuit, DC, overload, overheat, ultrasonic, RF, voltage peak limit,

Operating Voltage – AC 100V-260V/50Hz-60Hz

Fuse – F-25A

Power consumption (Idle) – <155W

Power consumption (Max) – <8500W

Cicuit – Class D

Dimensions (LxWxD) – 483mmx415mm×45mm (1U)

Package (L×W×D) – 610mm×500mm×100mm

Net Weight – 10Kg

Gross Weight – 11.5Kg
