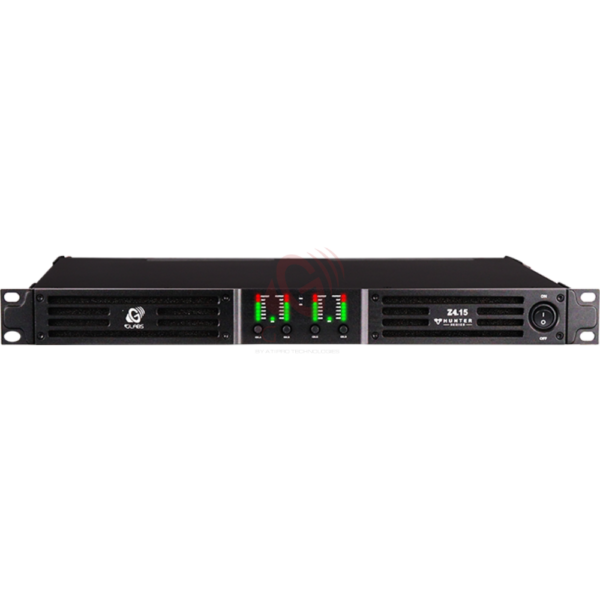

GLABS Z4.15 AMPLIFIER

Output Power Stereo (RMS) – 4 x 1600W @ 8ohm

Output Power Stereo (RMS) – 4 x 2560W @ 4ohm

Output Power Stereo (RMS) – 4 x 3840W @ 2ohm

Bridge Mode (RMS) – 2 x 3200W @ 16ohm

Bridge Mode (RMS) – 2 x 5280W @ 8ohm

Bridge Mode (RMS) – 2 x 6720W @ 4ohm

Frequency Response – 10Hz – 20KHz / ±0.35dB

THD+N (20Hz-20KHz – <0.5% @ 8Ω1kHz

S/N Rate (20Hz-20 kHz) – >102dB

Crosstalk (1KHz) – >70dB

Slew Rate – >30ν/με

Damping Factor – >5000 (8Ohm) 20Hz to 100Hz

Voltage Gain – 43.3dB (0.775V:113V)

Input Sensitivity – 0.775V,1V,1.4V

Input Impedance – 10K Ω balance/ 20K Ω unbalance

Input Connectors – XLR Active balanced pin1 gnd/pin 2+/pin3-

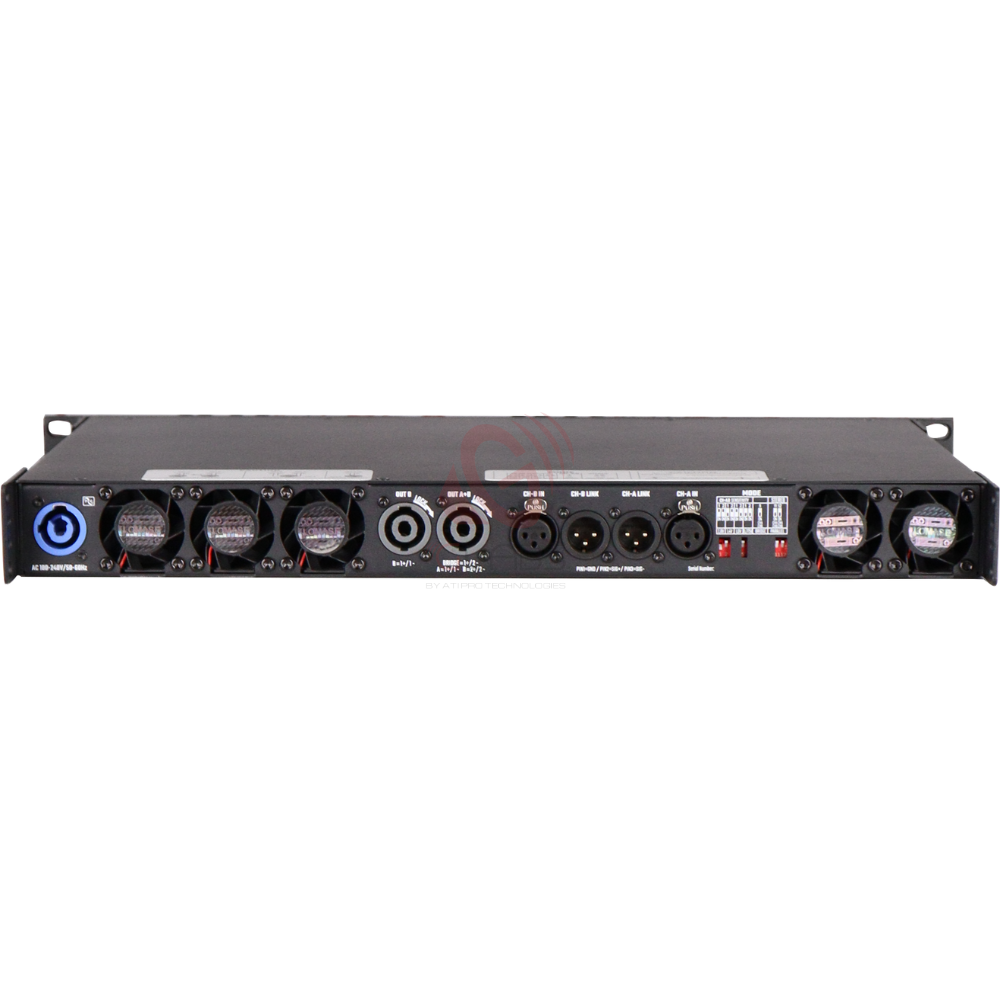

Output Connectors – 2 Neutrik NL4 Sockets / 2 input posts

Protection – short-circuit, DC, overload, overheat, ultrasonic, RF, voltage peak limit,

Operating Voltage – 110V/220V available

Fuse – F-15A*2

Power consumption (Idle) – <140W

Power consumption (Max) – <6100W

Cicuit – Class H

Dimensions (L×W×D) – 483mm×415mm×45mm(1U)

Package (L×W×D) – 610mm×500mm×100mm

Net Weight – 10.5Kg

Gross Weight – 13Kg

Description

Output Power Stereo (RMS) – 4 x 1600W @ 8ohm

Output Power Stereo (RMS) – 4 x 2560W @ 4ohm

Output Power Stereo (RMS) – 4 x 3840W @ 2ohm

Bridge Mode (RMS) – 2 x 3200W @ 16ohm

Bridge Mode (RMS) – 2 x 5280W @ 8ohm

Bridge Mode (RMS) – 2 x 6720W @ 4ohm

Frequency Response – 10Hz – 20KHz / ±0.35dB

THD+N (20Hz-20KHz – <0.5% @ 8Ω1kHz

S/N Rate (20Hz-20 kHz) – >102dB

Crosstalk (1KHz) – >70dB

Slew Rate – >30ν/με

Damping Factor – >5000 (8Ohm) 20Hz to 100Hz

Voltage Gain – 43.3dB (0.775V:113V)

Input Sensitivity – 0.775V,1V,1.4V

Input Impedance – 10K Ω balance/ 20K Ω unbalance

Input Connectors – XLR Active balanced pin1 gnd/pin 2+/pin3-

Output Connectors – 2 Neutrik NL4 Sockets / 2 input posts

Protection – short-circuit, DC, overload, overheat, ultrasonic, RF, voltage peak limit,

Operating Voltage – 110V/220V available

Fuse – F-15A*2

Power consumption (Idle) – <140W

Power consumption (Max) – <6100W

Cicuit – Class H

Dimensions (L×W×D) – 483mm×415mm×45mm(1U)

Package (L×W×D) – 610mm×500mm×100mm

Net Weight – 10.5Kg

Gross Weight – 13Kg
